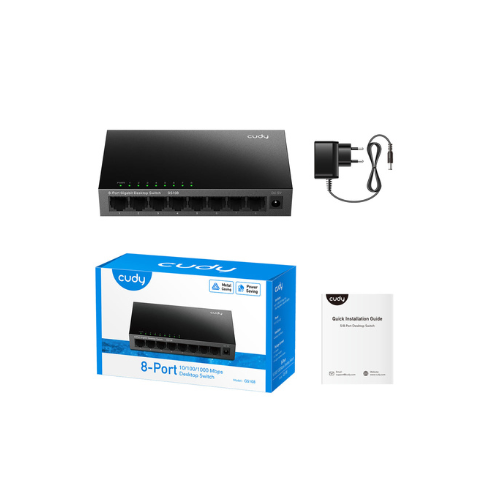

GS108

The GS108 4.0 is an 8-port Gigabit unmanaged switch designed for long-distance connections, featuring a robust metal casing. It includes 8 Gigabit Ethernet ports, capable of supporting up to 170 meters of Gigabit transmission.

Datasheet

We’re always here to help

Need a Customized Solution
Curious About Product Compatibility
Ready To Request a Quote

Our knowledgeable team is available via online chat, phone, or email to assist you with any questions or requests.

Contact Our Team Today

Categories: Industrial SwitchesPublished On: November 4, 2024

Product Information

The GS108 4.0 is an 8-port Gigabit unmanaged switch designed for long-distance connections, featuring a robust metal casing. It includes 8 Gigabit Ethernet ports, capable of supporting up to 170 meters of Gigabit transmission. With a 4 Mbit packet buffer, it efficiently handles data flow.

The switch operates with a maximum power consumption of 2.75W, while idle consumption is just 2.2W, making it energy-efficient. It offers versatile installation options, suitable for desktop or wall-mount setups, and has compact dimensions of 88×52.5×24 mm (3.46×2.07×0.94 inches), weighing 211 g (7.44 oz).

Documents

DATASHEET

Technical Information

Product Model: GS108
Standards Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface: 8 x 10/100/1000Mbps Auto-Negotiation ports
Network Media: 10Base-T: Cat3, 4, 5 or above UTP (≤100m); 100Base-TX: Cat5 or above UTP (≤100m); 1000Base-TX: Cat5 or above UTP (≤100m)
Transfer Method: Store-and-Forward
MAC Address Table: 8K
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mbps
Packet Buffer: 4 Mbit
Jumbo Frame: 15K Byte
LED Indicators: On: power on; Off: no power; On: 10/100/1000M link connection is normal; Blinking: Data transmission is normal; Off: link failure
Product Size: 138 x 78 x 25 mm
Input Voltage: DC 5V 0.55A
Environment: Operating Temperature: -10℃ to 50℃; Storage Temperature: -40℃ to 70℃; Operating Humidity: 10% to 90% non-condensing; Storage Humidity: 5% to 95% non-condensing.
