GS2028PS4
GS2028PS4 - Image 2
GS2028PS4 - Image 3

GS2028PS4

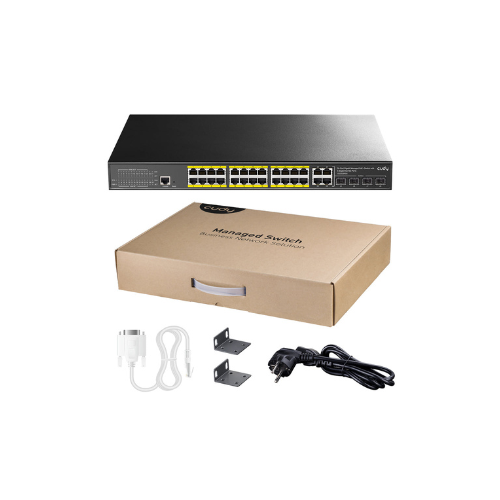

The GS2028PS4 is a rack-mounted 24-GbE, 4-Combo Layer 2 PoE switch, designed for efficient network management and power delivery. It features 24 GbE ports compliant with 802.3at/af PoE, along with 4 GbE/SFP combo ports for versatile connectivity options.

We’re always here to help



  1. Need a Customized Solution
  2. Curious About Product Compatibility
  3. Ready To Request a Quote

Our knowledgeable team is available via online chat, phone, or email to assist you with any questions or requests.

Categories: Published On: November 4, 2024

Product Information

The GS2028PS4 is a rack-mounted 24-GbE, 4-Combo Layer 2 PoE switch, designed for efficient network management and power delivery. It features 24 GbE ports compliant with 802.3at/af PoE, along with 4 GbE/SFP combo ports for versatile connectivity options.

The switch is equipped with a robust 300W power supply and operates with a silent cooling system, making it suitable for various environments without disruptive noise. Its layer 2 managing features enhance network control, and it can be installed as either a desktop unit or a rack-mount device. The overall dimensions are 445×285×45 mm (17.52×11.22×1.77 inches), providing a compact yet powerful solution for modern networking needs.

Documents

DATASHEET

Technical Information

Model: GS2028PS4
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4W)
PoE Compatibility: IEEE 802.3af/at adaptive
PoE Port Output: DC48-55V
Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6(-)

PoE Parameters:

  • Port Lightning Protection: General Mode 6KV, Differential Mode 4KV, ESD 15KV
  • Network Transmission Medium:
    • 10BASE-T: Cat3, 4, 5 UTP (≤100 m)
    • 100BASE-TX: UTP (≤100 m) above Cat5
    • 1000BASE-TX: UTP (≤100 m) above Cat5
    • Multimode Fiber: 1310nm, 2Km
    • Single Mode Fiber: 1310nm, 20/40 Km; 1550nm, 60/80/100/120 Km

LED Indicator: SYS, PWR, Link (lines 2, 4) / Act (lines 1, 3)
Power Supply: Machine input voltage: AC110-240V; Output: DC52V 5.76A; Total power: 300W

Physical Dimensions:

  • Product Size: 445mm × 285mm × 45mm
  • Package Size: 470mm × 350mm × 120mm

Working Environment:

  • Operating Temperature: -20° ~ 55°C
  • Storage Temperature: -40° ~ 85°C
  • Operating Humidity: 10% ~ 95%, non-condensing
  • Working Height: Up to 10,000 feet (3,000 meters)
  • Storage Height: Up to 10,000 feet (3,000 meters)
